Louvreclad Ellenborough Series® features sleek aluminum chevron louvres with zero vision screening, perfect for privacy and airflow. Powder-coated or anodized, it’s ideal for stylish commercial exteriors.

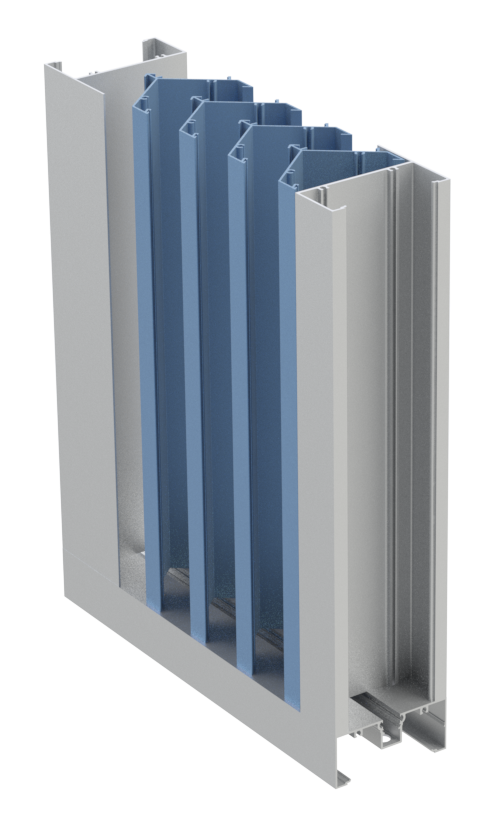

Chevron extruded aluminium louvres
download Revit file request DWG file
Aerodynamics
Discharge Coefficient
Effective Aerodynamic Area
Free Open Area
Depth
Pitch
Max span
Weight
Orientation
Aerodynamics
Discharge Coefficient
Effective Aerodynamic Area
Free Open Area
Depth
Pitch
Max span
Weight
Orientation
Selecting the right louvre
involves these steps.
To select the right performance louvre for your project design:
1. The mechanical engineer defines the required volume flow rate (m ³/s) for mechanical plant or passive ventilation dictated by the mechanical equipment behind the louvres.
2. Mechanical engineer defines the maximum allowable pressure drop across a louvre before fan performance suffers.
3. The architect and engineer then balance the louvre façade area (m2) against the pressure drop requirements, required rain resistance, and aesthetics to get a mutually workable outcome.
4. Finally you can then specify the louvre that works for your design aesthetically and achieves the performance classification required for both aerodynamics and rain defence using the Australian Standard AS 4740 classification system.
Please note: louvre performance is proportional to the design airflow. For example, the higher the air velocity, the lower the rain defence.
Should you require samples, we offer up to 3 product samples free of charge. Special colour requests POA.
Reach out today to discuss your facade solution requirements; we would love to hear from you.
