Altura Series® Chevron Vertical Louvres

Features of Full Chevron Vertical Louvres:

  • 145mm vertical louvre blade (60% FOA)
  • 300mm vertical louvre blade (80% FOA)
  • Zero vision
  • Aluminium extrusion powder coated or anodised to any colour
  • Ideal for plant room screens & enclosures with high ventilation requirements
  • Assembled & installed in panels or as a continuous louvre

Details of Full Chevron Vertical Louvres:

  • Altura 145
    • 62.5mm blade pitch
    • maximum blade span: 1500mm
  • Altura 300
    • 100mm blade pitch
    • maximum blade span: 1700mm
  • Maximum blade length: 6000mm
  • Designed, engineered and certified to AS/NZS 4740 and AS/NZS 1170 loading codes

Zero vision, full chevron aluminium vertical louvres

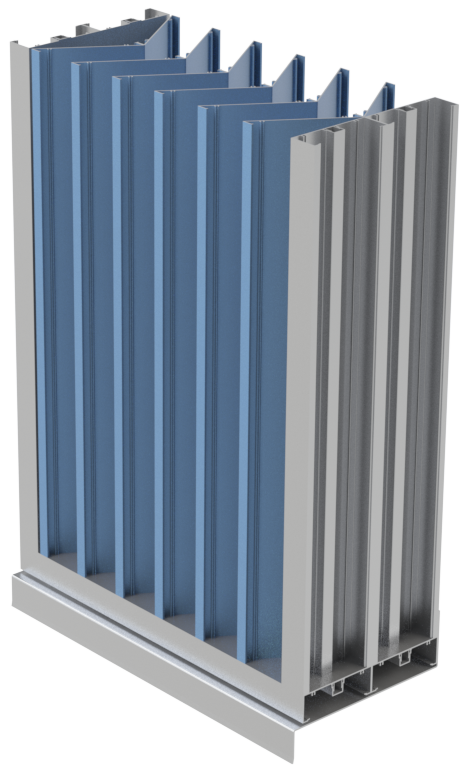

Louvreclad’s Altura Series® comes in 145mm or 300mm-deep extruded aluminium full chevron vertical louvre profiles.

With high performance front-of-mind, the Altura Series® vertical louvres are designed and engineered to provide maximum airflow, to meet building performance requirements with minimal louvre area (m2).

They are ideal for large plant screens and ventilation louvres with the requirement of a good balance between airflow and rain defence. The Altura Series® is also excellent for designs which require all mechanical equipment to be hidden from public view.

Whether you select Altura Series® 300 or 145, both will guarantee zero-vision vertical louvre screening, that is a highly sought-after architectural element which only the full chevron louvre system can provide. Designed and engineered to suit the project, this vertical external louvre system can be powder coated or anodised to any colour.

Altura Series® can also be fabricated as pre-assembled panels, keeping time on site to a minimum.

The Altura Series® full chevron louvre is one of the highest performing premium quality aluminium fixed vertical louvres on the market.

It is also offered in horizontal configuration, if required.

Performance Tested to AS/NZS 4740:2000

Altura Series® 145 is an extruded aluminium 62.5mm pitch by 145mm deep vertical chevron louvre that provides 60% Free Open Area, Class 1 for Aerodynamics and 95% effective Class C rain defence.

Altura Series® 300 is a 100mm pitch 300mm deep fixed blade louvre which achieves a Class 1 for aerodynamics and a Class B for rain defence making it one of the highest performing louvres on the market for both rain defence and aerodynamics. Alongside this, the Altura Series® is one of the only louvres which provides 80% free open area. (See plan view animations below)

Altura 145 Aerodynamics Simulation

Altura 145 Rain Defence Simulation

Altura 300 Aerodynamics Simulation

Altura 300 Rain Defence Simulation

Early Contractor Involvement

Early Contractor Involvement (ECI) can save money, save time and ensure the best outcome.

Get in touch with one of our experts at design stage and ensure the success of your project.  Whether it is a highly bespoke & complex brief that requires testing & prototyping or a simple design needing clarification around detailing, to achieve a high-end premium finish, attention-to-detail is essential.

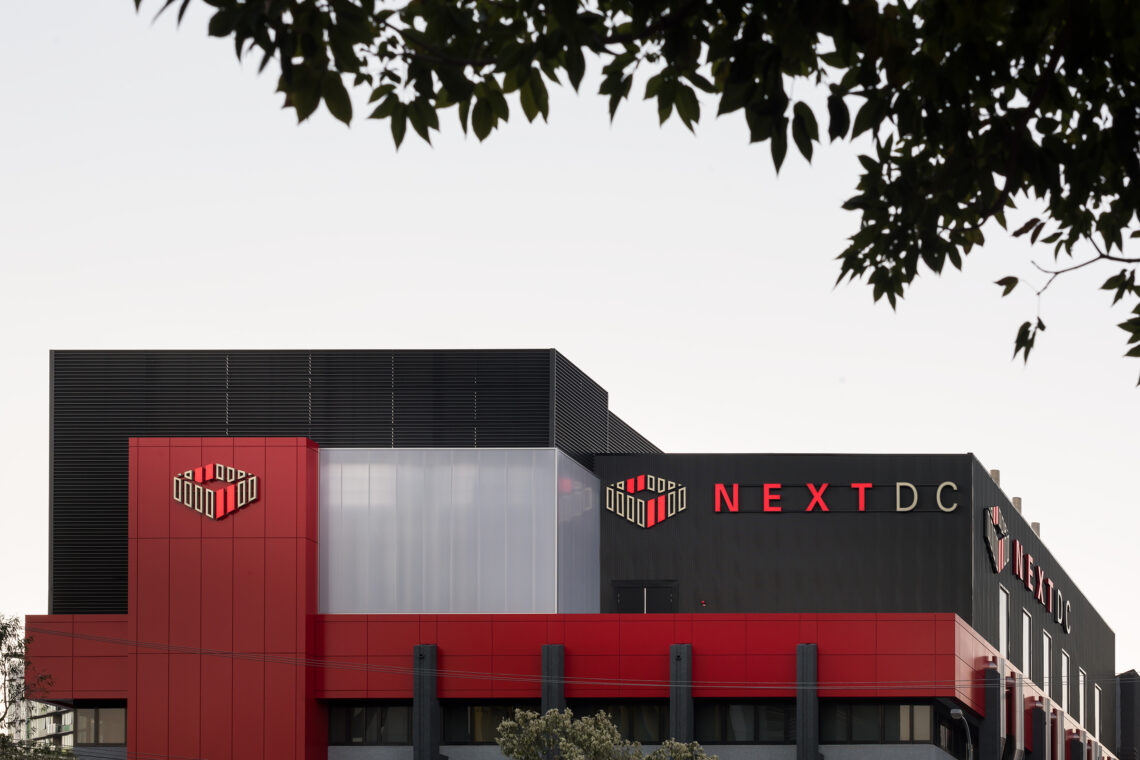

Projects Featuring Altura Series® Chevron Vertical Louvres:

One One One Eagle Street – Brisbane QLD
