Venus Series® Chevron Louvre

Louvreclad Venus Series® steel chevron louvres offer zero-vision screening. Installable horizontally or vertically, they are ideal for plant screening, privacy, and security.

Features

Explore the profile options

Venus Series®

Roll-formed steel chevron louvres

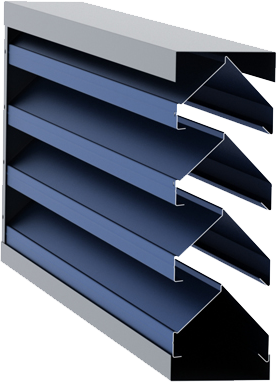

Featured Image

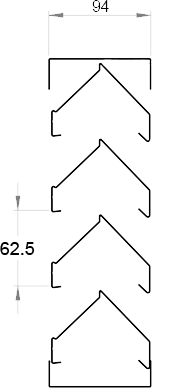

Product Drawing Image
Class C

Average Rain Defence

83 %

Effective Rain Defence

Class 3

Aerodynamics

42 %

Free Open Area

0.477 CD

Discharge Coefficient

0.2 m2

Effective Aerodynamic Area

94 mm

Depth

62.5 mm

Pitch

1800 mm

Max span

20kg/m2

Weight

Horizontal, Vertical

Orientation

Speak to an expert

Reach out today to discuss your facade solution requirements; we would love to hear from you.

"*" indicates required fields

Made to Perform

Projects will be delivered in a timely manner, be on specification, engineered to Australian standards and finished to the highest quality.

PROTOTYPES

Custom prototypes available

Should you require samples, we offer up to 3 product samples free of charge. Special colour requests POA.

How to specify

Selecting the right louvre
involves these steps.

To select the right performance louvre for your project design:
1) The mechanical engineer defines the required volume flow rate (m ³/s) for mechanical plant or passive ventilation dictated by the mechanical equipment behind the louvres.
2) Mechanical engineer defines the maximum allowable pressure drop across a louvre before fan performance suffers.
3) The architect and engineer then balance the louvre façade area (m2) against the pressure drop requirements, required rain resistance, and aesthetics to get a mutually workable outcome.
4) Finally you can then specify the louvre that works for your design aesthetically and achieves the performance classification required for both aerodynamics and rain defence using the Australian Standard AS4740:2000 classification system.
Please note: louvre performance is proportional to the design airflow. For example, the higher the air velocity, the lower the rain defence.
