Venus Series® Chevron Louvre

Features of Chevron Louvre:

  • Blades can be mounted vertically or horizontally
  • Provides privacy screening in apartment buildings or screening for unsightly plant and equipment
  • Available in Colorbond® steel, Colorbond® Ultra & Metallic Range and Zincalume® standard range
  • High impact and wind loadings
  • Zero visual barrier

Details of Chevron Louvre:

  • Louvre material is 0.55 base metal thickness
  • 42% free open area full chevron louvre
  • 62.5mm Blade pitch
  • Maximum blade span: 1500mm
  • Maximum blade length: 7200mm
  • Maximum side channel length: 4000mm
  • Zero Vision through louvre for privacy

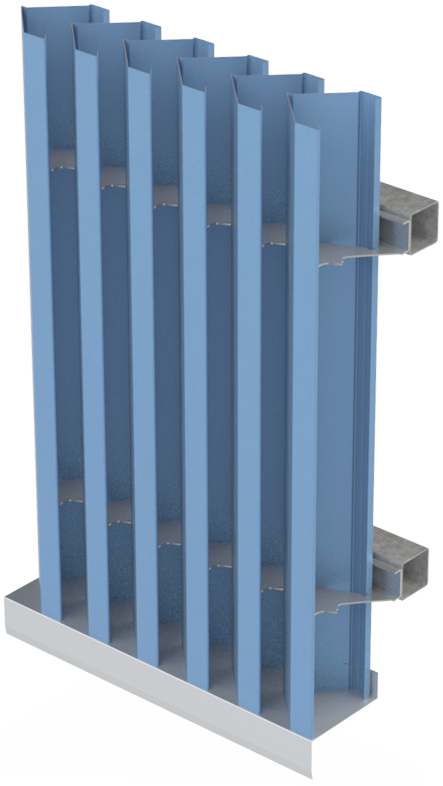

  • Vertical and horizontal orientation

Full Chevron Louvre System

Louvreclad’s Venus Series® is a single stage full chevron louvre system, ideal for plant screening applications, privacy blocking and security screening.

The Venus Series® is a fixed louvre design with endless economic applications as the louvres can be mounted in any configuration, have zero vision and provide security, thus providing a wide range of benefits for screening unsightly plant equipment, balcony screening and carparks.

This has a louvre appearance from either side, thus making it aesthetically pleasing in situations where both sides can be seen.

Performance Tested to AS/NZS 4740:2000

Louvreclad Venus Series®  is a single stage full chevron louvre system and achieves a Class 3 for aerodynamics and Class C for rain defence, while providing a 42% free open area making it ideal for plant screening applications, privacy blocking and security screening.

Aerodynamics Simulation

Rain Defence Simulation

Early Contractor Involvement

Early Contractor Involvement (ECI) can save money, save time and ensure the best outcome.

Get in touch with one of our experts at design stage and ensure the success of your project.  Whether it is a highly bespoke & complex brief that requires testing & prototyping or a simple design needing clarification around detailing, to achieve a high-end premium finish, attention-to-detail is essential.
